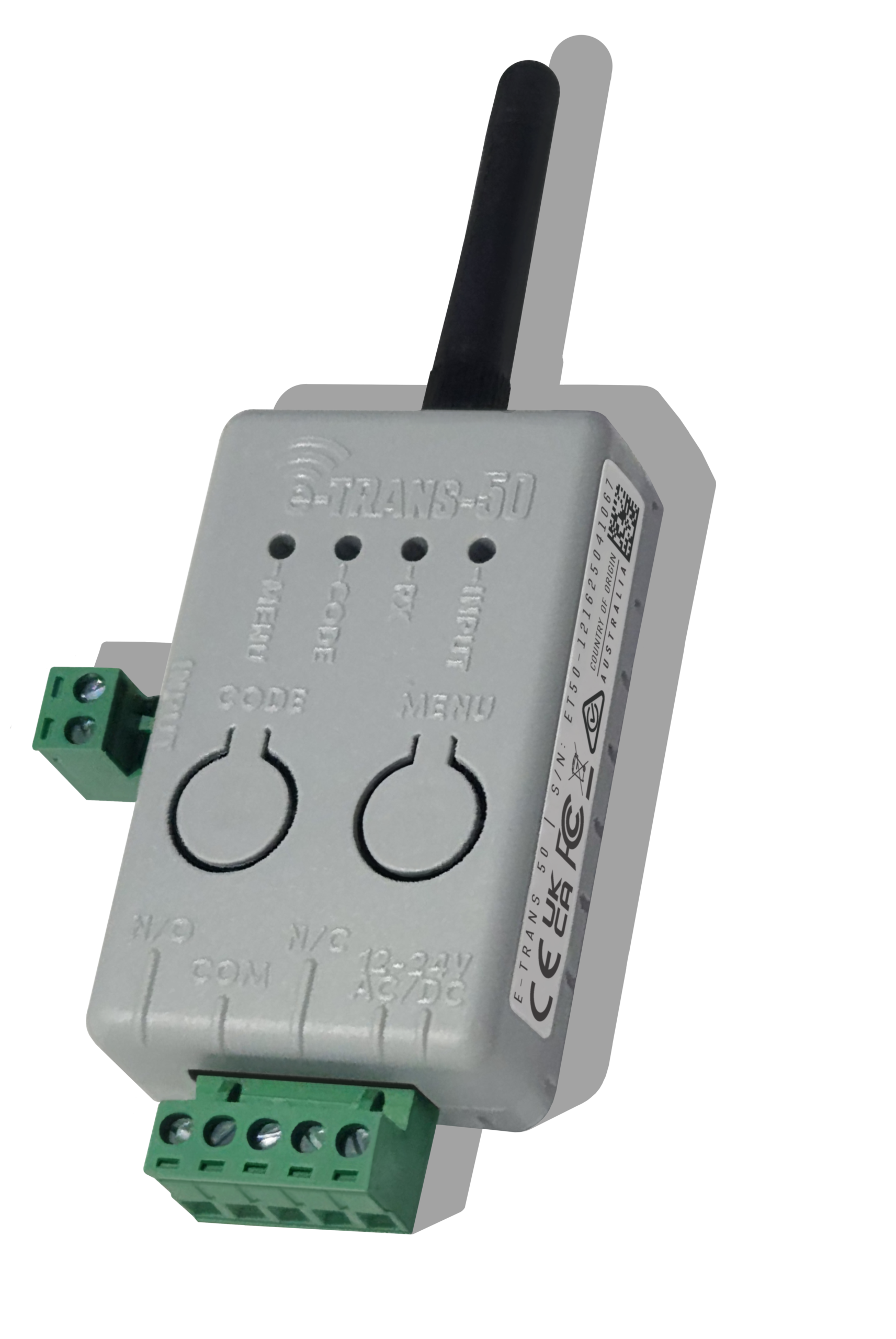

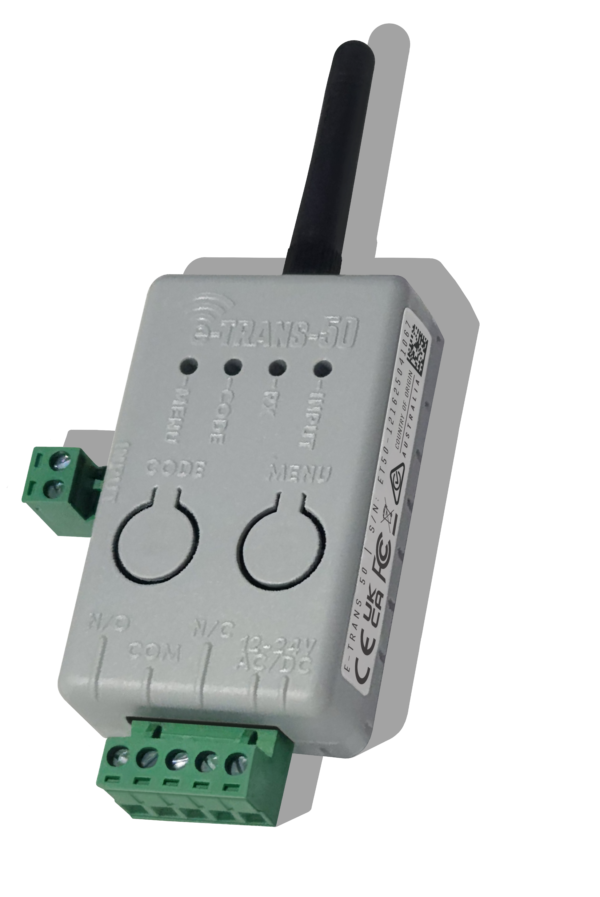

The e-Trans 50 is a single-channel bidirectional wireless transceiver designed to add wireless access control to virtually any gate or garage door motor. Wire the relay output to your motor’s open input and it triggers automatically whenever it receives a valid signal from a remote, e-Loop sensor, keypad or entry button.
Smart Home & Multi-Gate Integration
The e-Trans 50 includes a dedicated trigger input. wire it to a smart home relay, automation system or any switched output and it will trigger the gate on demand. It can also send a signal to a second e-Trans unit (with an input), letting you chain gates together so one action opens multiple points simultaneously.
V4 Radio. Replay Attack Protection
All e-Trans 50 units ship with Microtech’s V4 radio chipset, featuring proprietary challenge-response authentication. This actively defeats RollJam, RollBack and BruteForce attack methods that can compromise standard rolling code systems. Every transmission is secured with AES-128 bit encryption. the same standard used by military and government organisations worldwide.
Three relay modes. Pulse, Latch and Hold. give you full control over gate behaviour. Mount the transceiver inside your gate motor housing or a weatherproof enclosure; pair an external antenna (12 dBi or 30 dBi) to extend range when mounted internally.
Specs: Frequency: 433.39 MHz | Voltage: 10–36V DC | Standby: 4.5 mA | Active: 30 mA | Remote storage: 50 | e-Loop storage: 4 | Relay: 1A COM + N/O | Modes: Pulse, Latch, Hold | Input: yes (trigger + forwarding)
| Attributes | Value |
|---|---|
| Weight | 66 g |
| Dimensions | 105 × 66 × 27 mm |
50 in stock
A compact single-channel wireless transceiver that adds remote, keypad and vehicle loop access control to any gate or garage door. Features a trigger input for smart home integration and can forward signals to additional transceivers.
The e-Trans 50 is a single-channel bidirectional wireless transceiver designed to add wireless access control to virtually any gate or garage door motor. Wire the relay output to your motor’s open input and it triggers automatically whenever it receives a valid signal from a remote, e-Loop sensor, keypad or entry button.
Smart Home & Multi-Gate Integration
The e-Trans 50 includes a dedicated trigger input. wire it to a smart home relay, automation system or any switched output and it will trigger the gate on demand. It can also send a signal to a second e-Trans unit (with an input), letting you chain gates together so one action opens multiple points simultaneously.
V4 Radio. Replay Attack Protection
All e-Trans 50 units ship with Microtech’s V4 radio chipset, featuring proprietary challenge-response authentication. This actively defeats RollJam, RollBack and BruteForce attack methods that can compromise standard rolling code systems. Every transmission is secured with AES-128 bit encryption. the same standard used by military and government organisations worldwide.
Three relay modes. Pulse, Latch and Hold. give you full control over gate behaviour. Mount the transceiver inside your gate motor housing or a weatherproof enclosure; pair an external antenna (12 dBi or 30 dBi) to extend range when mounted internally.
Specs: Frequency: 433.39 MHz | Voltage: 10–36V DC | Standby: 4.5 mA | Active: 30 mA | Remote storage: 50 | e-Loop storage: 4 | Relay: 1A COM + N/O | Modes: Pulse, Latch, Hold | Input: yes (trigger + forwarding)
